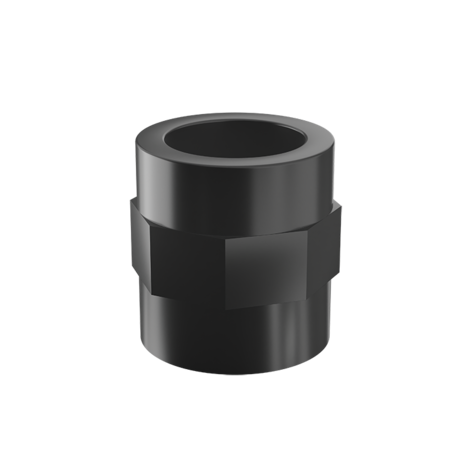

MLFV
Fittings according to british standard - BS-BSP adaptors.

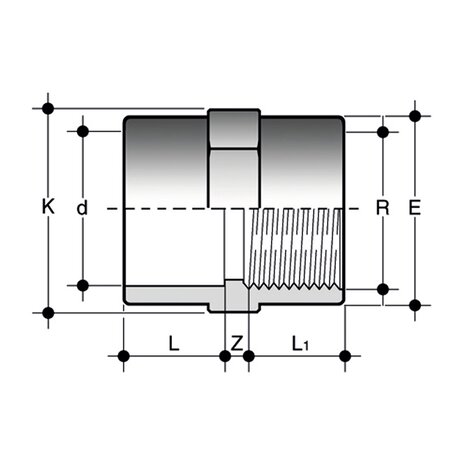

Double socket with solvent weld socket d and BSP threaded female end R.
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
| Reference | K | Z | K | g |
|---|---|---|---|---|
| MLFV012 | 24 | 4 | 24 | 15 |
| MLFV034 | 29 | 5,2 | 29 | 25 |
| MLFV100 | 35 | 4,5 | 35 | 45 |
| MLFV114 | 43 | 4 | 43 | 65 |
| MLFV112 | 50 | 8 | 50 | 100 |
| MLFV200 | 61 | 9 | 61 | 160 |
| DIFV090075212 | 76 | 17,8 | 76 | 260 |
| MLFV300 | 108 | 22,7 | 108 | 449 |
