MIF

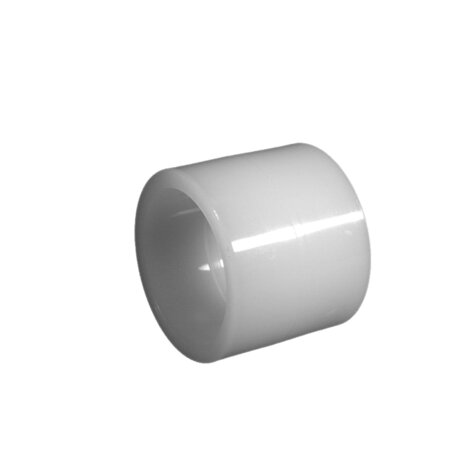

Adaptor for socket welding - equal socket.
Double socket for socket welding.
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

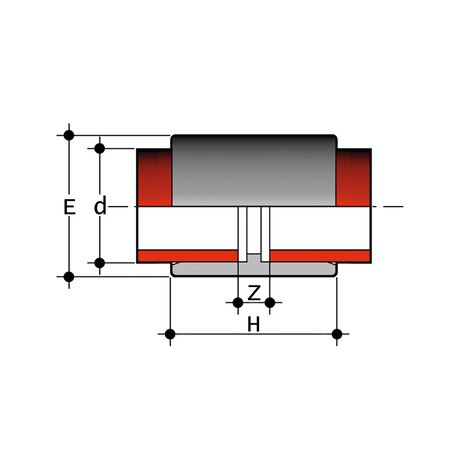

| Reference | H | Z | d | g |
|---|---|---|---|---|
| MIF020 | 36 | 7 | 20 | 20 |
| MIF025 | 40 | 8 | 25 | 28 |
| MIF032 | 44 | 8 | 32 | 48 |
| MIF040 | 49 | 8 | 40 | 70 |
| MIF050 | 55 | 8 | 50 | 120 |
| MIF063 | 64 | 9 | 63 | 185 |
| MIF075 | 72 | 10 | 75 | 275 |
| MIF090 | 79 | 8 | 90 | 415 |
| MIF110 | 84 | 11 | 110 | 710 |
