LTKD 90 Stroke limiter
Accessories for TKD Dual Block® series ball valves DN 10÷50
The LTKD stroke limiter specifically permits handle and ball rotation only at set opening and closing angles.
The LTKD090 version permits operations for 90° angles.

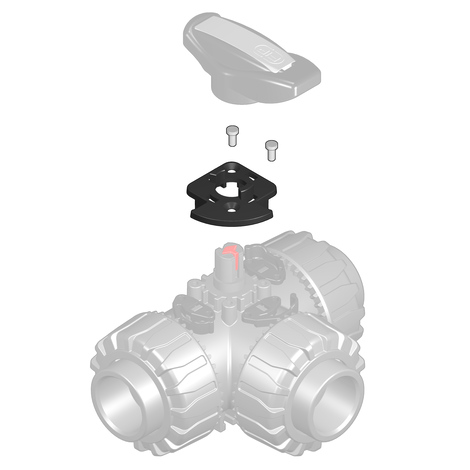

The LTKD stroke limiter is made up of a single removable plate made of technopolymer, specifically designed to be directly housed on the valve body mounting flange.
It is secured to the valve body by self-tapping screws or plastic rivets.
| Reference | DN |
|---|---|
| LTKD090020 | 10 - 15 |
| LTKD090032 | 20 - 25 |
| LTKD090050 | 32 - 40 |
| LTKD090063 | 50 |
