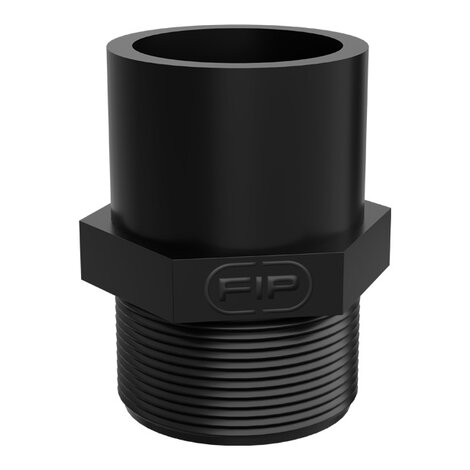

KBFE - Adaptor
Adaptor with short spigot for butt welding, BSP (R) threaded male end, SDR 11 - S5.
Series of fittings designed for conveying fluids under pressure with a thread and weld connection system (butt welding).
| Reference |
|---|
| KBFE11020012 |
| KBFE11025034 |
| KBFE11032100 |
| KBFE11040114 |
| KBFE11050112 |
| KBFE11063200 |

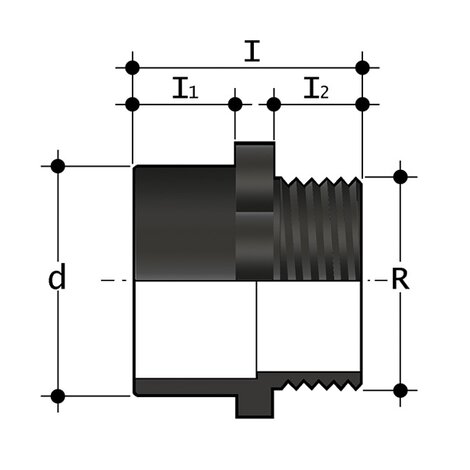

- Size range: d 20 ÷ 63 (mm); R 1/2” ÷ 2”
- Nominal pressure: SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Thread: ISO 228-1, DIN 2999
- Construction criteria: EN ISO 15494
- Test methods and requirements: EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307, UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
