ILFV
Fittings according to british standard - BS-BSP adaptors.

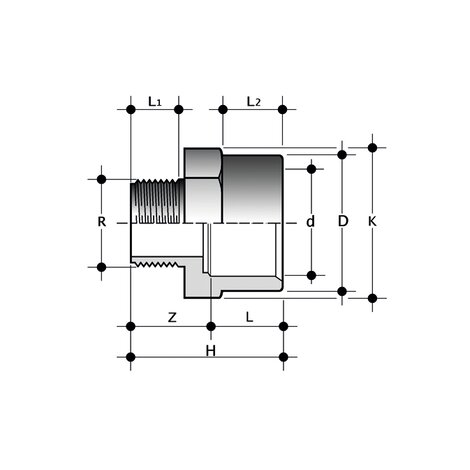

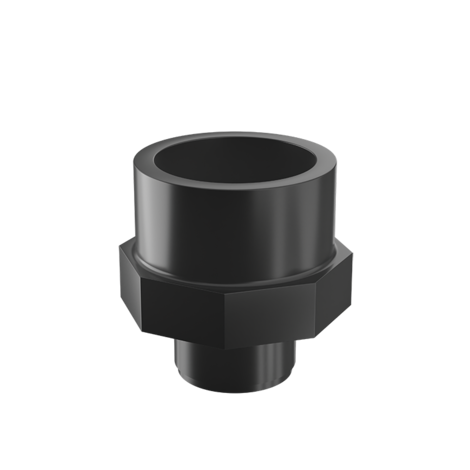

Female/male adaptor with solvent weld socket d and BSP threaded male end R.
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
| Reference | H | K | Z | K | g |
|---|---|---|---|---|---|
| ILFV012 | 37,5 | 30 | 21 | 30 | 20 |
| ILFV034 | 42 | 36 | 22,5 | 36 | 22 |
| ILFV100 | 47,5 | 46 | 25 | 46 | 25 |
| ILFV112 | 62 | 65 | 31 | 65 | 98 |
| ILFV114 | 56,5 | 55 | 29,5 | 55 | 65 |
| ILFV200 | 73 | 80 | 35 | 80 | 160 |
