IFFV
Threaded fittings - reducers.

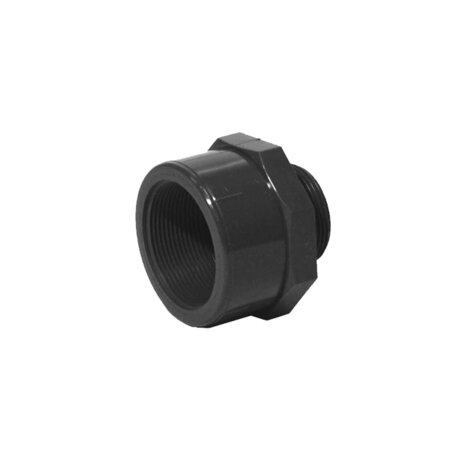

Reducer: BSP threaded female end (R1), BSP threaded male end (R reduced).
Series of fittings for pipes conveying fluids under pressure with threaded joints.

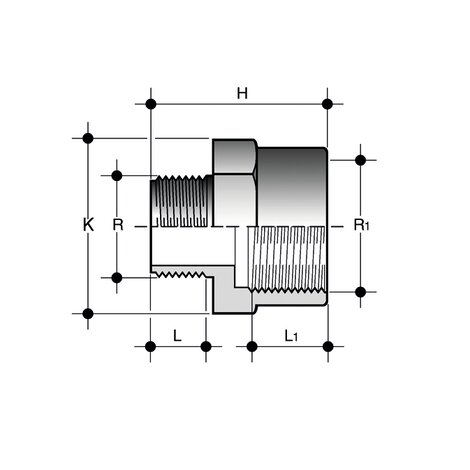

| Reference | H | K | K | g |
|---|---|---|---|---|
| IFFV034012 | 41 | 36 | 36 | 22 |
| IFFV100012 | 40,5 | 43 | 43 | 30 |
| IFFV100034 | 42 | 43 | 43 | 42 |
| IFFV114100 | 55 | 55 | 55 | 55 |
| IFFV112114 | 62 | 65 | 65 | 102 |
| IFFV200112 | 69 | 80 | 80 | 165 |
| IFFV212200 | 81 | 95 | 95 | 210 |
| IFFV300212 | 93 | 110 | 110 | 360 |
| IFFV400300 | 106 | 130 | 130 | 500 |
