HLV
Fittings according to british standard - equal socket.

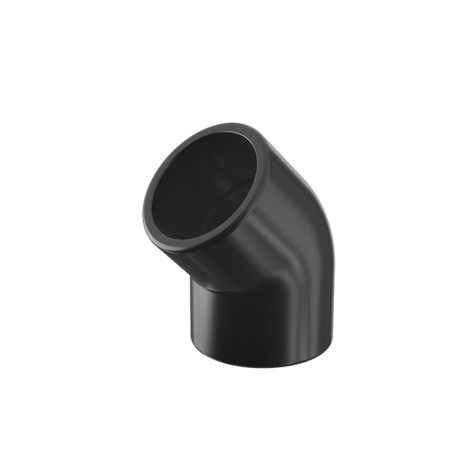

45° elbow with solvent weld sockets.
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.

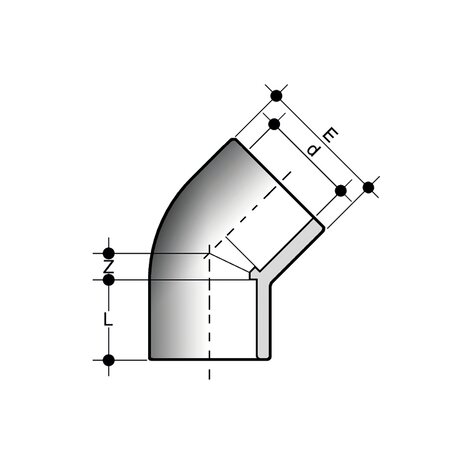

| Reference | Z | d | g |
|---|---|---|---|
| HLV012 | 5 | 1/2" | 13 |
| HLV034 | 5,5 | 3/4" | 20 |
| HLV100 | 7 | 1" | 45 |
| HLV114 | 10,5 | 1"1/4 | 85 |
| HLV112 | 11,5 | 1"1/2 | 155 |
| HLV200 | 14 | 2" | 291 |
| HIV075 | 17 | 2"1/2 | 315 |
| HLV300 | 21,5 | 3" | 565 |
| HLV400 | 26 | 4" | 740 |
