HIF
Adaptor for socket welding - equal socket.

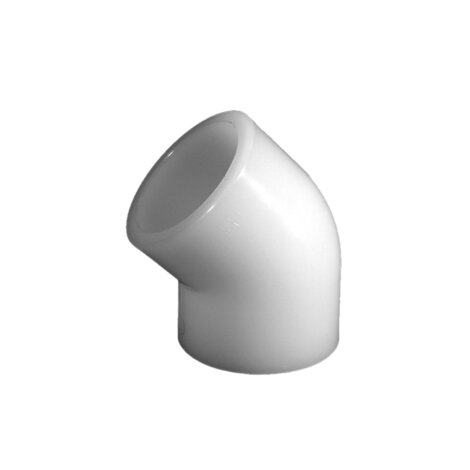

45° elbow for socket welding.
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Reference | H | Z | d | g |
|---|---|---|---|---|
| HIF020 | 22 | 7 | 20 | 24 |
| HIF025 | 25 | 9 | 25 | 37 |
| HIF032 | 30 | 12 | 32 | 63 |
| HIF040 | 37 | 16 | 40 | 110 |
| HIF050 | 43 | 19 | 50 | 202 |
| HIF063 | 52 | 25 | 63 | 337 |
| HIF075 | 61 | 30 | 75 | 395 |
| HIF090 | 73 | 37 | 90 | 645 |
| HIF110 | 87 | 46 | 110 | 1095 |
