HFV
Threaded fittings - equal socket.

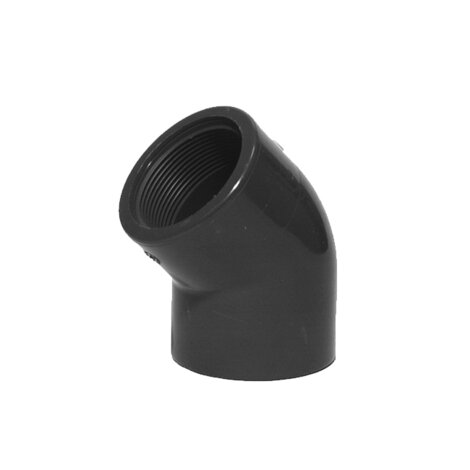

45° elbow with BSP threaded female ends.
Series of fittings for pipes conveying fluids under pressure with threaded joints.

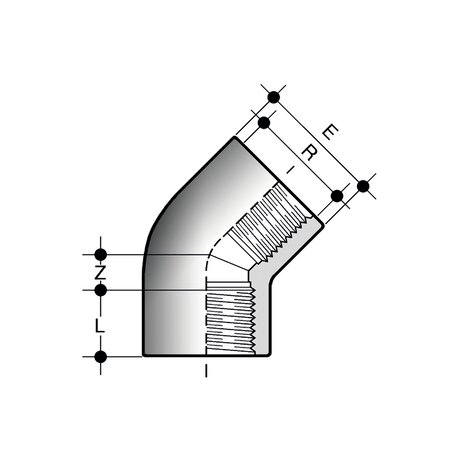

| Reference | Z | g |
|---|---|---|
| HFV012 | 6,5 | 18 |
| HFV034 | 8 | 24 |
| HFV100 | 10,5 | 45 |
| HFV114 | 15 | 68 |
| HFV112 | 21 | 154 |
| HFV200 | 26 | 255 |
| HFV212 | 31 | 345 |
| HFV300 | 39 | 625 |
