GIC
Solvent weld fittings - equal socket.

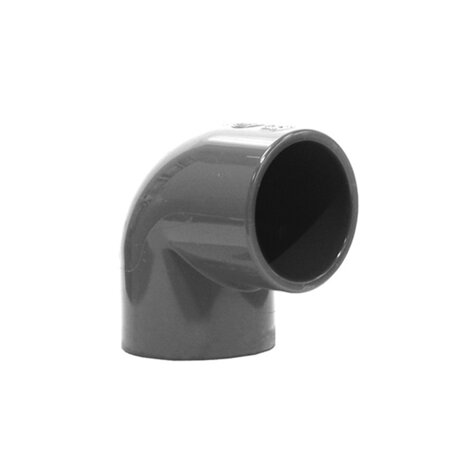

90° elbow with solvent weld sockets (fig. A).
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
| Reference | Z | d | g |
|---|---|---|---|
| GIC016 | 9 | 16 | 12 |
| GIC020 | 11,5 | 20 | 20 |
| GIC025 | 14 | 25 | 34 |
| GIC032 | 16,5 | 32 | 56 |
| GIC040 | 22,5 | 40 | 95 |
| GIC050 | 27 | 50 | 155 |
| GIC063 | 33,5 | 63 | 283 |
| GIC075 | 40,3 | 75 | 490 |
| GIC090 | 48 | 90 | 745 |
| GIC110 | 60 | 110 | 1265 |
| GIC160 | 93 | 160 | 4450 |
