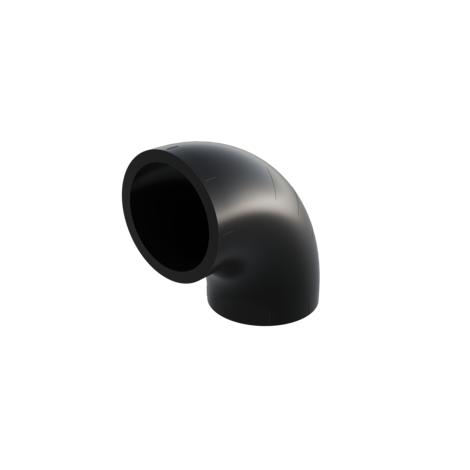

GBE/GKE SDR11 - 90° Bend
90° bend, short spigot for butt welding SDR 11 - S 5.
Series of short and long fittings designed for conveying fluids under pressure for butt welding and electrofusion applications.

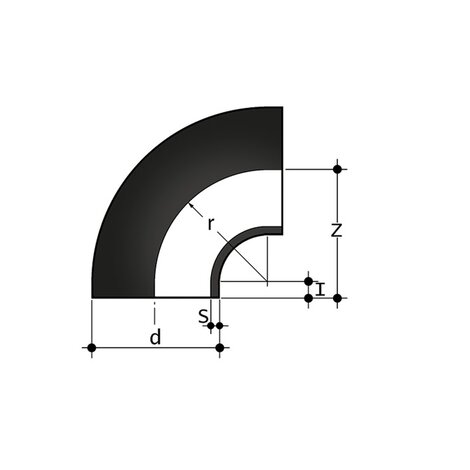

| Reference | Z | d | g |
|---|---|---|---|
| GKE11020 | 34 | 20 | 7 |
| GKE11025 | 37 | 25 | 12 |
| GKE11032 | 40 | 32 | 20 |
| GKE11040 | 51 | 40 | 40 |
| GKE11050 | 62 | 50 | 74 |
| GKE11063 | 77 | 63 | 148 |
| GKE11075 | 85 | 75 | 212 |
| GKE11090 | 100 | 90 | 361 |
| GKE11110 | 120 | 110 | 635 |
| GBE11125 | 140 | 125 | 1007 |
| GBE11140 | 155 | 140 | 1391 |
| GBE11160 | 175 | 160 | 1980 |
| GBE11180 | 184 | *180 | 2585 |
| GBE11200 | 215 | 200 | 3885 |
| GBE11225 | 245 | 225 | 5655 |
| GBE11250 | 275 | 250 | 7652 |
| GBE11280 | 310 | 280 | 10663 |
| GBE11315 | 350 | 315 | 15279 |
| GBE11355 | 380 | *355 | 20825 |
| GBE11400 | 434 | *400 | 30214 |
| GBE11450 | 510 | *450 | 55482 |
| GBE11500 | 560 | *500 | 71250 |
*resale products
- Size range: d 12 ÷ d 800 (mm)
- Nominal pressure: SDR 17 (PN10) with water at 20 °C, SDR 11 (PN16) with water at 20 °C
- Temperature range: -40 °C ÷ 60 °C
- Coupling standards - Reference standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Flanging system: ISO 7005-1, EN 1092-1, EN ISO 15494, ANSI B16.5 cl.150
- Construction criteria: UNI EN ISO 15494
- Test methods and requirements: UNI EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-1, UNI EN 12201- 3, UNI 10520, ISO 21307,UNI 10521, UNI EN 1555-3, ISO 4427- 3, ISO 4437-3
- Fitting material: PE-HD
- Seal material: EPDM, FKM
