FROAV - Clapet valve DN 32:400

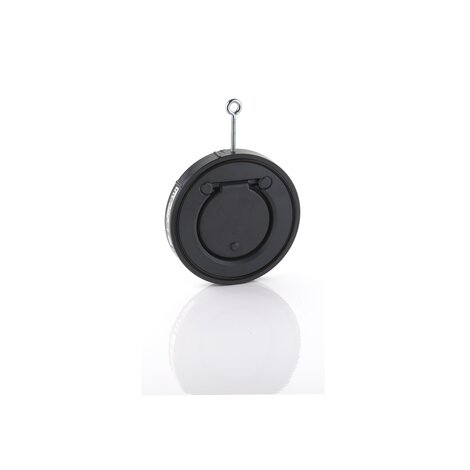

Clapet valve in PVC-U without spring, ANSI150 series.
The FR type swing check valve is designed to be directly installed between stubs and flanges according to ISO/DIN or ANSI 150 standards.
EPDM
| Reference | Z | d | DN | g |
|---|---|---|---|---|
| FROAV112E | 16 | 1"1/2 | 40 | 160 |
| FROAV816E | 65 | 16" | 400 | 12975 |
| FROAV814E | 49 | 14" | 350 | 7855 |
| FROAV812E | 45 | 12" | 300 | 5350 |
| FROAV810E | 40 | 10" | 250 | 3540 |
| FROAV800E | 34 | 8" | 200 | 2130 |
| FROAV200E | 18 | 2" | 50 | 260 |
| FROAV600E | 26 | 6" | 150 | 1120 |
| FROAV500E | 23 | 5" | 125 | 760 |
| FROAV400E | 23 | 4" | 100 | 560 |
| FROAV300E | 20 | 3" | 80 | 400 |
| FROAV212E | 20 | 2"1/2 | 65 | 330 |
| FROAV114E | 15 | 1 1/4" | 32 | 140 |
FKM
| Reference | Z | d | DN | g |
|---|---|---|---|---|
| FROAV112F | 16 | 1"1/2 | 40 | 160 |
| FROAV114F | 15 | 1 1/4" | 32 | 140 |
| FROAV200F | 18 | 2" | 50 | 260 |
| FROAV212F | 20 | 2"1/2 | 65 | 330 |
| FROAV300F | 20 | 3" | 80 | 400 |
| FROAV400F | 23 | 4" | 100 | 560 |
| FROAV500F | 23 | 5" | 125 | 760 |
| FROAV600F | 26 | 6" | 150 | 1120 |
| FROAV800F | 34 | 8" | 200 | 2130 |
| FROAV810F | 40 | 10" | 250 | 3540 |
| FROAV812F | 45 | 12" | 300 | 5350 |
| FROAV814F | 49 | 14" | 350 | 7855 |
| FROAV816F | 65 | 16" | 400 | 12975 |
- Installed with FIP QPV (d40 - d160) stubs and QRV stubs using flat gasket QHV/Y (d225 - d315), on PVC piping class PN10 or lower with type ODV flanges
- Metal support for easy and precise centring of the valve during installation
- Can be installed in either a vertical or horizontal position
- Sealing system with O-ring for optimum sealing and installation without flat gaskets
