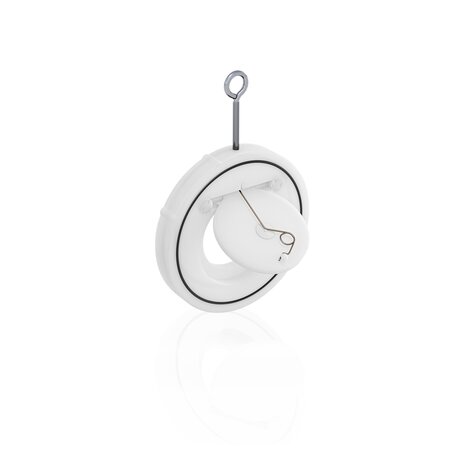

FROAF/C4 - Clapet valve with Hastelloy C4 spring DN 32:400
Clapet valve in PVDF with Hastelloy spring, ANSI150 series.
The FR type swing check valve is designed to be directly installed between stubs and flanges according to ISO/DIN or ANSI 150 standards.
EPDM
| Reference | Z |
|---|---|
| FROAF112EMLH | 16 |
| FROAF114EMLH | 15 |
| FROAF200EMLH | 18 |
| FROAF212EMLH | 20 |
| FROAF300EMLH | 20 |
| FROAF400EMLH | 23 |
| FROAF500EMLH | 23 |
| FROAF600EMLH | 26 |
| FROAF800EMLH | 34 |
| FROAF810EMLH | 40 |
| FROAF812EMLH | 45 |
| FROAF814EMLH | 49 |
| FROAF816EMLH | 65 |
FKM
| Reference | Z |
|---|---|
| FROAF112FMLH | 16 |
| FROAF114FMLH | 15 |
| FROAF200FMLH | 18 |
| FROAF212FMLH | 20 |
| FROAF300FMLH | 20 |
| FROAF400FMLH | 23 |
| FROAF500FMLH | 23 |
| FROAF600FMLH | 26 |
| FROAF800FMLH | 34 |
| FROAF810FMLH | 40 |
| FROAF812FMLH | 45 |
| FROAF814FMLH | 49 |
| FROAF816FMLH | 65 |
PTFE
| Reference | Z |
|---|---|
| FROAF112PMLH | 16 |
| FROAF114PMLH | 15 |
| FROAF200PMLH | 18 |
| FROAF212PMLH | 20 |
| FROAF300PMLH | 20 |
| FROAF400PMLH | 23 |
| FROAF500PMLH | 23 |
| FROAF600PMLH | 26 |
| FROAF800PMLH | 34 |
| FROAF810PMLH | 40 |
| FROAF812PMLH | 45 |
| FROAF814PMLH | 49 |
| FROAF816PMLH | 65 |
- Installed with FIP QPV (d50 - d160) stubs and QRV stubs using flat gasket QHV/Y (d225 - d315), on PVC piping class PN10 or lower with type ODV flanges
- Metal support for easy and precise centring of the valve during installation
- Can be installed in either a vertical or horizontal position
- Sealing system with O-ring for optimum sealing and installation without flat gaskets
