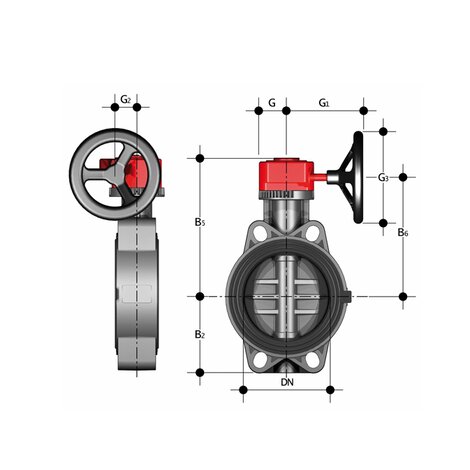

FEOV/RM - Butterfly valve DN 40:200

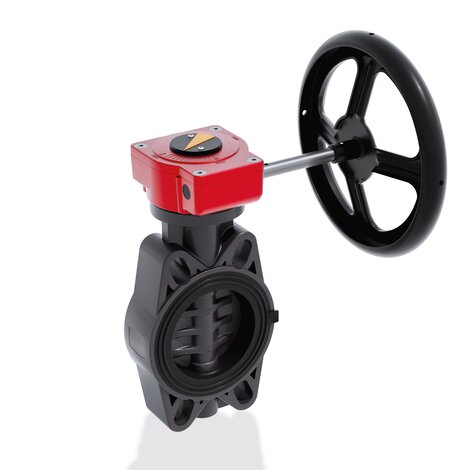

Gearbox operated butterfly valve.
The FE is a butterfly valve for shutting off or regulating flow, specifically designed for water applications and equipped with a customisable Labelling System.
Main features:
- Ergonomic multifunctional handle in HIPVC with the option for quick operation, graduated adjustment in 12 positions (every 7.5°). 180° reversible mounting
- Customisable Labelling System: integrated module, made of a transparent protection plug customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to the specific needs
- Drilling pattern with oval slots that allow coupling to flanges according to numerous international standards
- Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid.
- One-piece top flange with PVC-U rack. Drilling according to standard ISO 5211 for direct drive:
- DN 40 ÷ 65: F05
- DN 80 ÷ 150: F07
- DN 200: F10
EPDM
| Reference | U |
|---|---|
| FEOVRM075E | 4 |
| FEOVRM090E | 4 |
| FEOVRM110E | 4 |
| FEOVRM140E | 4 |
| FEOVRM160E | 4 |
| FEOVRM225E | 8 |
FKM
| Reference | U |
|---|---|
| FEOVRM075F | 4 |
| FEOVRM090F | 4 |
| FEOVRM110F | 4 |
| FEOVRM140F | 4 |
| FEOVRM160F | 4 |
| FEOVRM225F | 8 |
- Disk in PVC-U with through shaft
- Zinc plated square section steel stem completely isolated from the fluid complying with standard ISO 5211:
- DN 40 ÷ 65: 11 mm
- DN 80 ÷ 100: 14 mm
- DN 125 ÷ 150: 17 mm
- DN 200: 22 mm
- Can also be installed as a bottom discharge valve or tank dump valve
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Possibility of directly installing a gearbox or pneumatic and/or electric actuators with a standard drilling pattern according to standard ISO 5211 F05, F07, F10
