F6.61.XX

Hot Tap Magmeter Flow Sensor

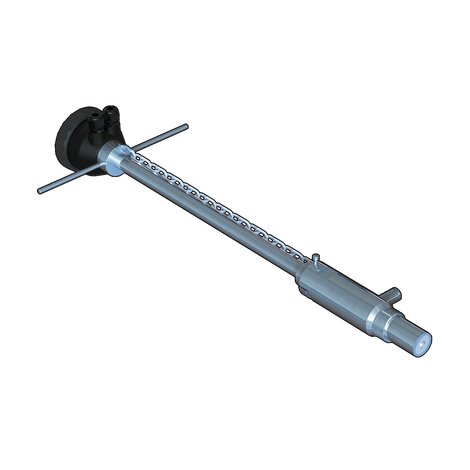

FLS F6.61 Hot Tap Insertion Magmeter Flow Sensor is a flowmeter without moving mechanical parts which can be applied for the measurement of dirty liquids so long as they are conductive and homogeneous. The sensor can provide three different options: frequency output to be connected to FLS flow monitors, 4-20 mA output for long distance transmission and PLC connection and the new volume pulse output freely settable. FLS F6.61 Insertion Magmeter is provided with an USB interface and a dedicated software (freely downloadable from FLS web site) which allows to easily set by a PC all parameters according to specific installation requirements. The sensor can be assembled in a wide dynamic range of pressurized pipe sizes from DN50 (2”) to DN900 (36”) using a standard clamp saddle and an isolation ball valve
Go back
F6.61.XX
Reference
F6.61.01

APPLICATIONS:

  • Water distribution
  • Leak Detection or Monitoring
  • Raw water intake
  • Water and waste water treatment
  • Ground water remediation
  • Irrigation

MAIN FEATURES:

  • Adjustable sensor position
  • Hot-Tap installation
  • Operating parameters settable by PC interface
  • Pressure intake
  • Standard 1 ¼” BSP process connection
  • No moving parts, no wear, maintenance free
  • Flow Rate Range settable from 0.05 to 8 m/s (0.15 to 25 ft/s)
  • Accurate measurement of dirty liquids
  • 4-20 mA, frequency or volume pulse outputs
  • Bi-directional flow measurement selectable
