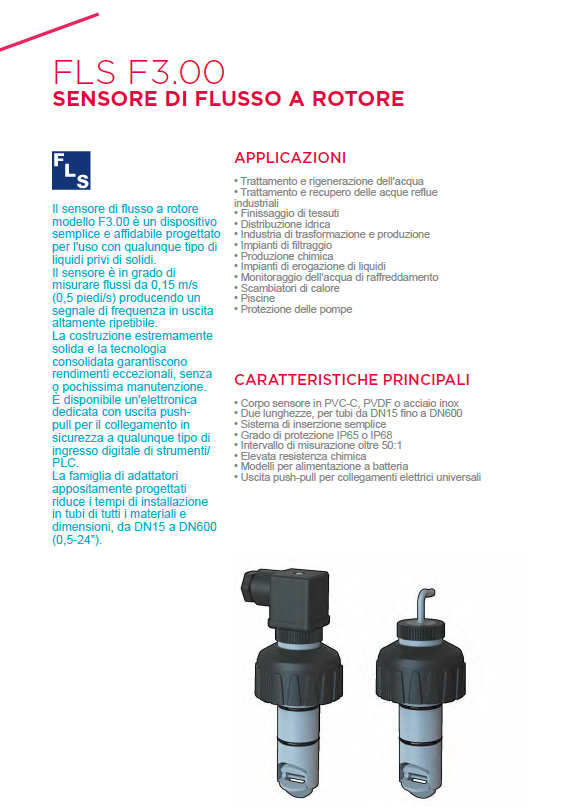

F3.00.C.XX
Paddlewheel Flow Sensor (Remote version for Battery powered monitor M9.20)
The simple and reliable
paddlewheel flow sensor type
F3.00 is designed for use with
every kind of solid-free liquids.
The sensor can measure
flow from 0.15 m/s (0.5 ft/s)
producing a frequency output
signal highly repeatable.
A rugged construction and a
proven technology guarantee
exceptional performances
with little or no maintenance
required.
A dedicated electronic, with a
push-pull output, is available
for a safe connection to any
kind of PLC/Instrument digital
input.
A specially designed family of
fittings ensures an easy and
quick installation into all pipe
materials in sizes from DN15
to DN600 (0.5” to 24”).
| Reference |
|---|
| F3.00.C.01 |
| F3.00.C.02 |
| F3.00.C.03 |
| F3.00.C.04 |
| F3.00.C.05 |
| F3.00.C.06 |
| F3.00.C.07 |
| F3.00.C.08 |
| F3.00.C.09 |
| F3.00.C.10 |
| F3.00.C.11 |
| F3.00.C.12 |
| F3.00.C.13 |
| F3.00.C.14 |
| F3.00.C.15 |
| F3.00.C.16 |
| F3.00.C.17 |
| F3.00.C.18 |
| F3.00.C.19 |
| F3.00.C.20 |
| F3.00.C.21 |
| F3.00.C.22 |
| F3.00.C.23 |
| F3.00.C.24 |
APPLICATIONS:
- Water treatment and regeneration
- Industrial wastewater treatment and recovery
- Textile finishing
- Water distribution
- Processing and manufacturing industry
- Filtration systems
- Chemical production
- Liquid delivery systems
- Cooling water monitoring
- Heat Exchangers
- Swimming pools
- Pump protection
MAIN FEATURES:
- C-PVC, PVDF or Stainless Steel sensor body
- Two sensor lenghts to cover from DN15 up to DN600
- Easy insertion system
- IP65 or IP68 protection class
- Measurement range over 50:1
- High chemical resistance
- Version for battery powered system
- Push-Pull output for universal electrical connection
