ATS 45

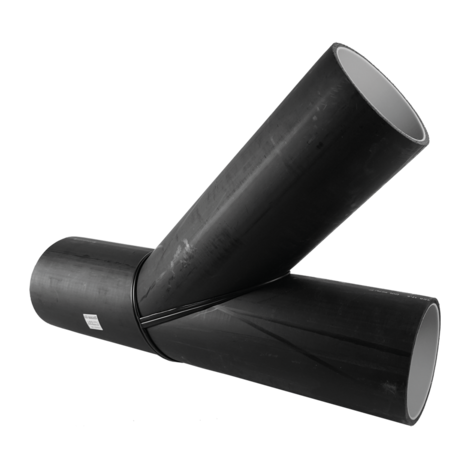

Equal branch 45° (spigot fitting)
Equal branch with same outlet 45°, SDR 17 (spigot fitting) ATS 45
- HD-PE fitting for processing without holding devices with FRIAFIT couplers AM
- Black pipe colour with bright inner surface
PE 100
Maximum permissible working pressure 4,5 bar (20 °C, water / sewage)
| Reference | d | l1 | l2 | s | Weight [kg] | BX |
|---|---|---|---|---|---|---|
| 682002 | 160 | 393 | 200 | 9,5 | 4,100 | 1 |
| 682004 | 200 | 491 | 250 | 11,9 | 8,700 | 1 |
| 682005 | 225 | 522 | 250 | 13,4 | 10,700 | 1 |
| 682006 | 250 | 602 | 300 | 14,8 | 13,400 | 1 |
| 682007 | 280 | 638 | 300 | 16,6 | 20,900 | 1 |
| 682008 | 315 | 730 | 350 | 18,7 | 36,600 | 1 |
| 682009 | 355 | 779 | 350 | 21,1 | 44,800 | 1 |
