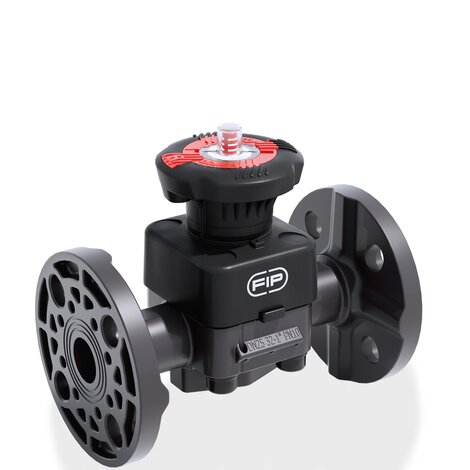

DKOV - DIALOCK® 2-way diaphragm valve DN 15:65
DIALOCK® diaphragm valve with flanged monolithic body, drilled PN10/16. Face to face according to EN 558-1.
The DK DIALOCK® diaphragm valve is particularly suitable for shutting off and regulating abrasive or dirty fluids. The new internal geometry of the body increases flow coefficient, reduce pressure drop and allows a sensitive and precise adjustment along the entire stroke of the shutter. The DK is extremely compact and very light. The innovative handwheel is equipped with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in any position.
Main features:
- High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
- Customisation plate: the customisation lets you identify the valve on the system according to specific needs
- DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
- Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
- Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
- New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
- Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
- Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
EPDM
| Reference | H | U | Sp | d | DN | g |
|---|---|---|---|---|---|---|
| DKOV020E | 130 | 4 | 13.5 | 20 | 15 | 925 |
| DKOV025E | 150 | 4 | 13.5 | 25 | 20 | 990 |
| DKOV032E | 160 | 4 | 13.5 | 32 | 25 | 1054 |
| DKOV040E | 180 | 4 | 14 | 40 | 32 | 1272 |
| DKOV050E | 200 | 4 | 16 | 50 | 40 | 2164 |
| DKOV063E | 230 | 4 | 16 | 63 | 50 | 3009 |
| DKOV075E | 290 | 4 | 21 | 75 | 65 | 3610 |
FKM
| Reference | H | U | Sp | d | DN | g |
|---|---|---|---|---|---|---|
| DKOV020F | 130 | 4 | 13.5 | 20 | 15 | 925 |
| DKOV025F | 150 | 4 | 13.5 | 25 | 20 | 990 |
| DKOV032F | 160 | 4 | 13.5 | 32 | 25 | 1054 |
| DKOV040F | 180 | 4 | 14 | 40 | 32 | 1272 |
| DKOV050F | 200 | 4 | 16 | 50 | 40 | 2164 |
| DKOV063F | 230 | 4 | 16 | 63 | 50 | 3009 |
| DKOV075F | 290 | 4 | 21 | 75 | 65 | 3610 |
PTFE
| Reference | H | U | Sp | d | DN | g |
|---|---|---|---|---|---|---|
| DKOV032P | 160 | 4 | 13.5 | 32 | 25 | 1054 |
| DKOV040P | 180 | 4 | 14 | 40 | 32 | 1272 |
| DKOV050P | 200 | 4 | 16 | 50 | 40 | 2164 |
| DKOV063P | 230 | 4 | 16 | 63 | 50 | 3009 |
| DKOV075P | 290 | 4 | 21 | 75 | 65 | 3610 |
| DKOV020P | 130 | 4 | 13.5 | 20 | 15 | 925 |
| DKOV025P | 150 | 4 | 13.5 | 25 | 20 | 990 |
- Connection system for solvent weld, threaded and flanged joints
- Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
- Internal components in metal, totally isolated from the fluid and external environment
- Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
- Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
- Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
- CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
- reduction in the tightening torque of the screws fixing the actuator to the valve body
- reduced mechanical stress on all valve components (actuator, body and diaphragm)
- easy to clean valve interior
- low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
- operating torque reduction
