CROV - Wafer check valve DN 40:300
Wafer check valve in PVC-U/EPDM.
The CR wafer check valve is designed to be installed directly between stubs and flanges in accordance with ISO/DIN standards.

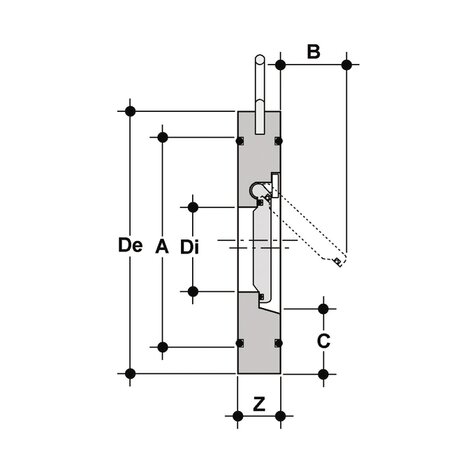

| Reference | Z | d | DN | g |
|---|---|---|---|---|
| CROV050E | 16 | 50 | 40 | 160 |
| CROV063E | 20 | 63 | 50 | 260 |
| CROV075E | 20 | 75 | 65 | 330 |
| CROV090E | 20 | 90 | 80 | 400 |
| CROV110E | 22 | 110 | 100 | 560 |
| CROV140E | 23 | 140 | 125 | 760 |
| CROV160E | 25 | 160 | 150 | 1120 |
| CROV225E | 35 | 225 | 200 | 2130 |
| CROV280E | 40 | 280 | 250 | 3540 |
| CROV315E | 45 | 315 | 300 | 5350 |
- Installed with FIP QPV (d50 - d160) stubs and QRV stubs using flat gasket QHV/Y (d225 - d315), on PVC piping class PN10 or lower with type ODV flanges
- Metal support for easy and precise centring of the valve during installation
- Can be installed in either a vertical or horizontal position
- Sealing system with O-ring for optimum sealing and installation without flat gaskets
