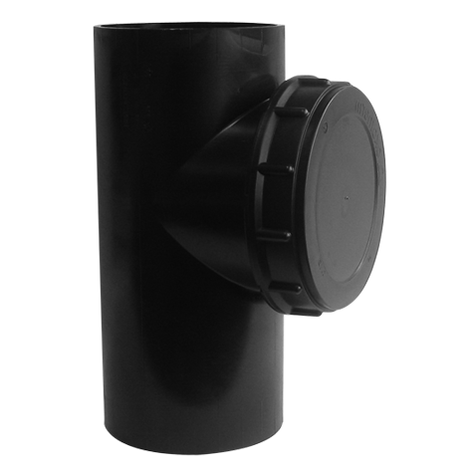

Clean out branch 90°

Clean out branches 90° can be applied in horizontal and vertical pipes.

Go back Data sheet

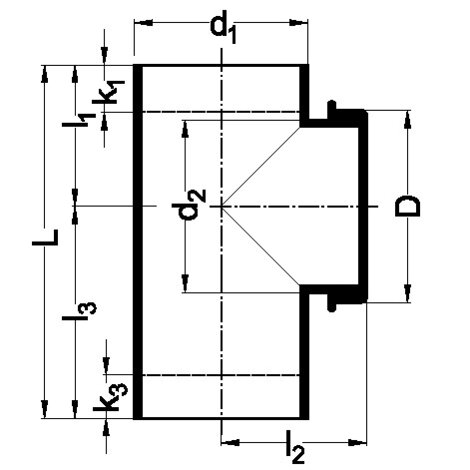

Reference	Kg	l1	l2	l3	k1	L	d2	D	k3
23 04 00	0,100	55	80	75	25	130	40	64	45
23 05 00	0,150	60	72	90	25	150	50	72	55
23 06 00	0,200	70	100	105	30	175	63	87	60
23 07 00	0,320	70	100	105	25	175	75	91	55
23 09 00	0,430	80	100	120	25	200	90	118	70
23 11 20	0,518	90	105	135	20	225	110	127	65	10
23 12 00	0,700	100	123	150	20	250	110	140	80
23 16 20	1,290	140	120	210	60	350	110	134	135
23 20 00	1,500	180	160	180	90	360	110	140	90
23 25 00	1,600	220	185	220	110	440	110	140	110
23 31 00	1,800	280	220	280	170	560	110	140	170
23 56 00	0,190	70	100	105	30	175	56	83	65
