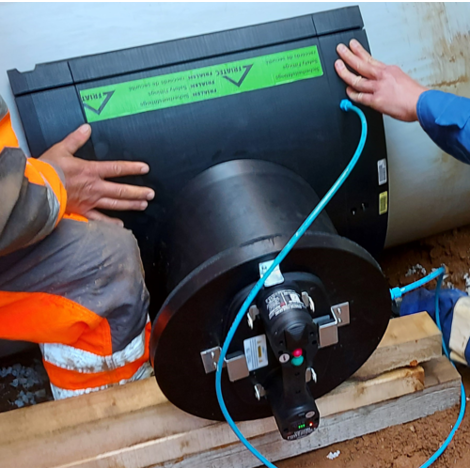

FRIALOAD
Clamping System (Vacuum Load)
For the assembly of:
- FRIALEN spigot saddles SA VL d 400 - d 1200 with outlet d 160 - d 400
- FRIAFIT sewage saddles ASA VL d 200 - d 630 with outlet d 160 and d 225
Note:

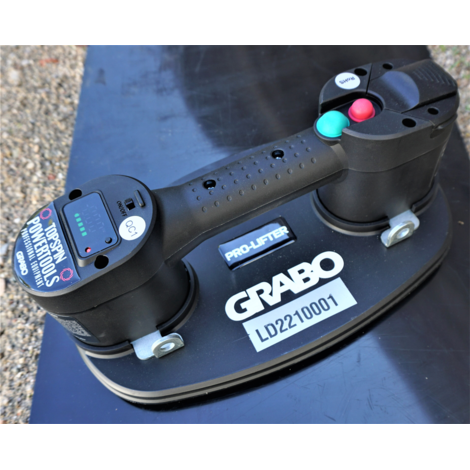

Battery-operated component PUMP generates and regulates vacuum fully automatically for the joining pressure. No additional power source required.

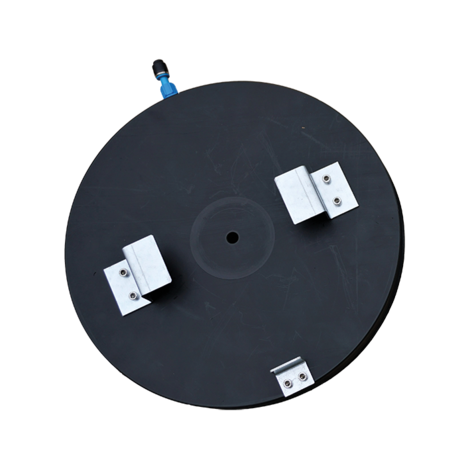

PLATE (d 325 and d 400) allow the processing of all with VL marked saddles. Outlet dimensions from d 160 to d 400.
| Reference | Article description | Weight kg | BX | PU |
|---|---|---|---|---|
| 613810 | PUMP | 1,500 | 1 | 10 |
| 617372 | PLATE | 6,050 | 1 | - |
