RVFV-RVFT - Sediment strainer DN 10:100
RVFV PVC-U rigid - RVFT PVC-U transparent.
Sediment strainer with BSP threaded female ends.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
EPDM

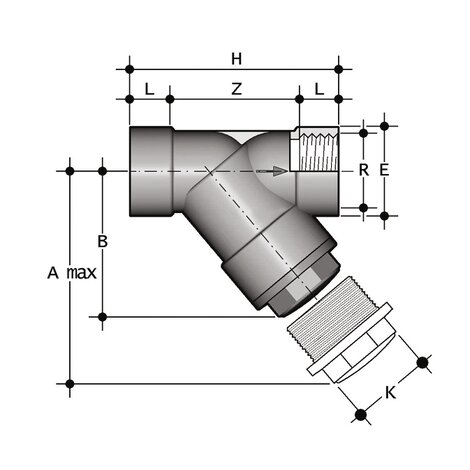

| Reference | H | K | Z | DN | K | g |
|---|---|---|---|---|---|---|
| RVFV212E | 243 | 96 | 182,6 | 65 | 96 | 2385 |
| RVFV300E | 262 | 105 | 195,4 | 80 | 105 | 2965 |
| RVFV400E | 325 | - | 246,4 | 100 | - | 4405 |
| RVFT212E | 243 | 96 | 182,6 | 65 | 96 | 2385 |
| RVFT300E | 262 | 105 | 195,4 | 80 | 105 | 2965 |
| RVFT400E | 325 | - | 246,4 | 100 | - | 4405 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
