RIV

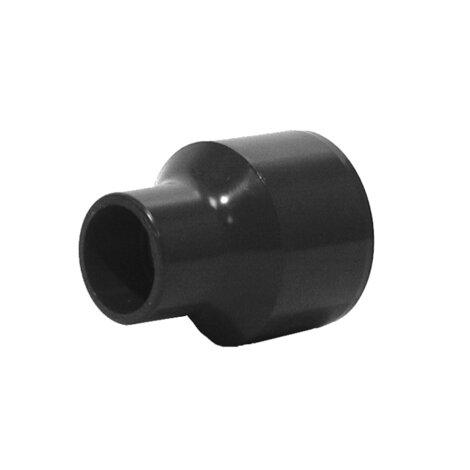

Solvent weld fittings - reducers.

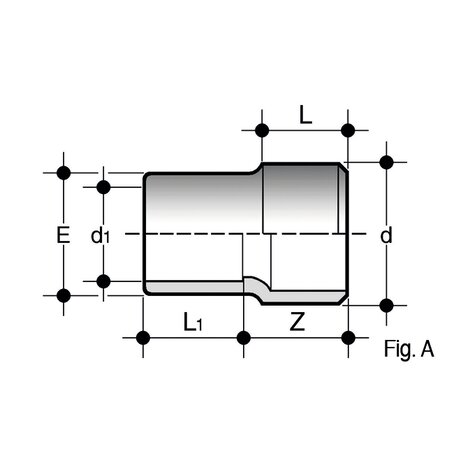

Reducer: solvent weld spigot (d), solvent weld socket (d1 reduced) (Fig.A).
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement and cleaner-primer.
| Reference | Z | g |
|---|---|---|
| RIV016012 | 18 | 7 |
| RIV020016 | 21 | 8 |
| RIV160110 | 125 | 1270 |
| RIV200160 | 156 | 2540 |
I: IIP 122 F: AFNOR NF04
RIV: the quality marks refer to dimensions d and d1
